SEGA Master System & Mega Drive: USB-C Mod (All models)

Description

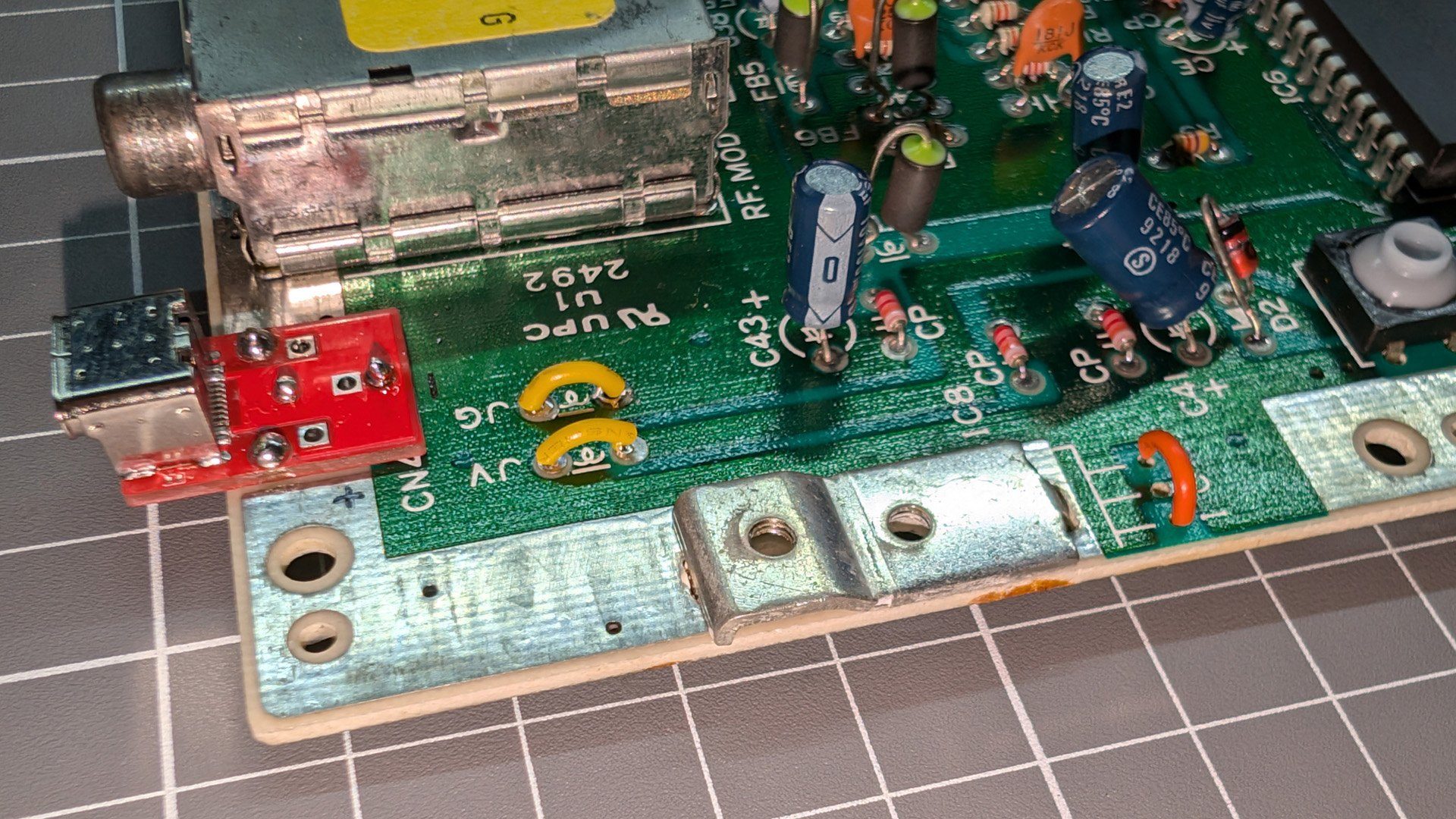

The SEGA Master System & Mega Drive USB-C Kit is a custom board that lets you upgrade your console by replacing the original power connector with a modern, universal USB-C connector.

Replace your old or damaged power connector and upgrade to modern convenience. This USB-C mod kit lets you power your console using any standard USB-C charger, including those for your smartphone or laptop.

This board is compatible with the following models:

• Master System 1 ⁽¹⁾

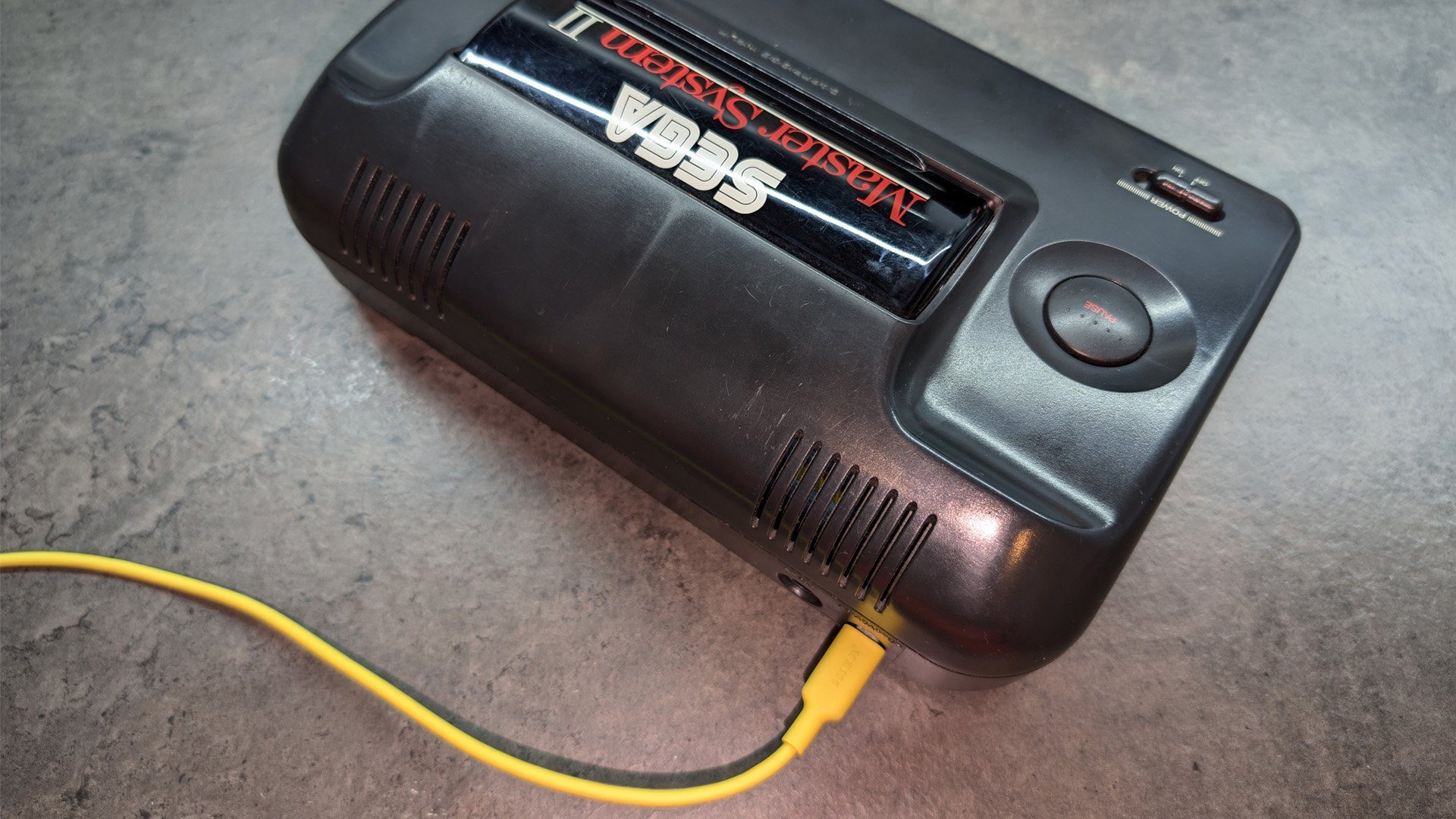

• Master System 2 ⁽¹⁾

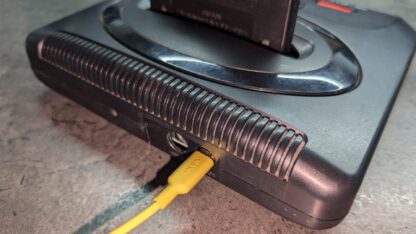

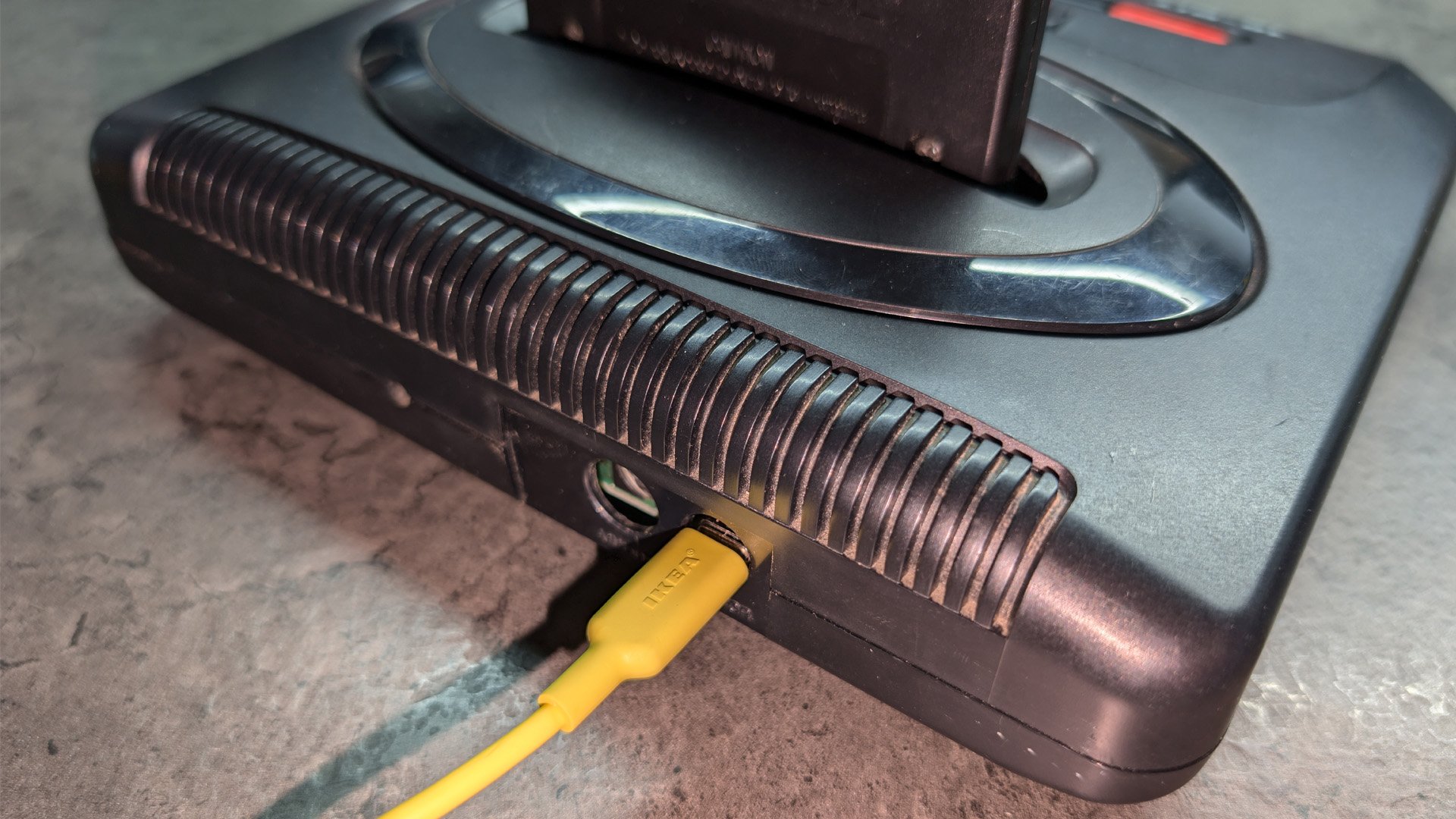

• Mega Drive 1 ⁽¹⁾

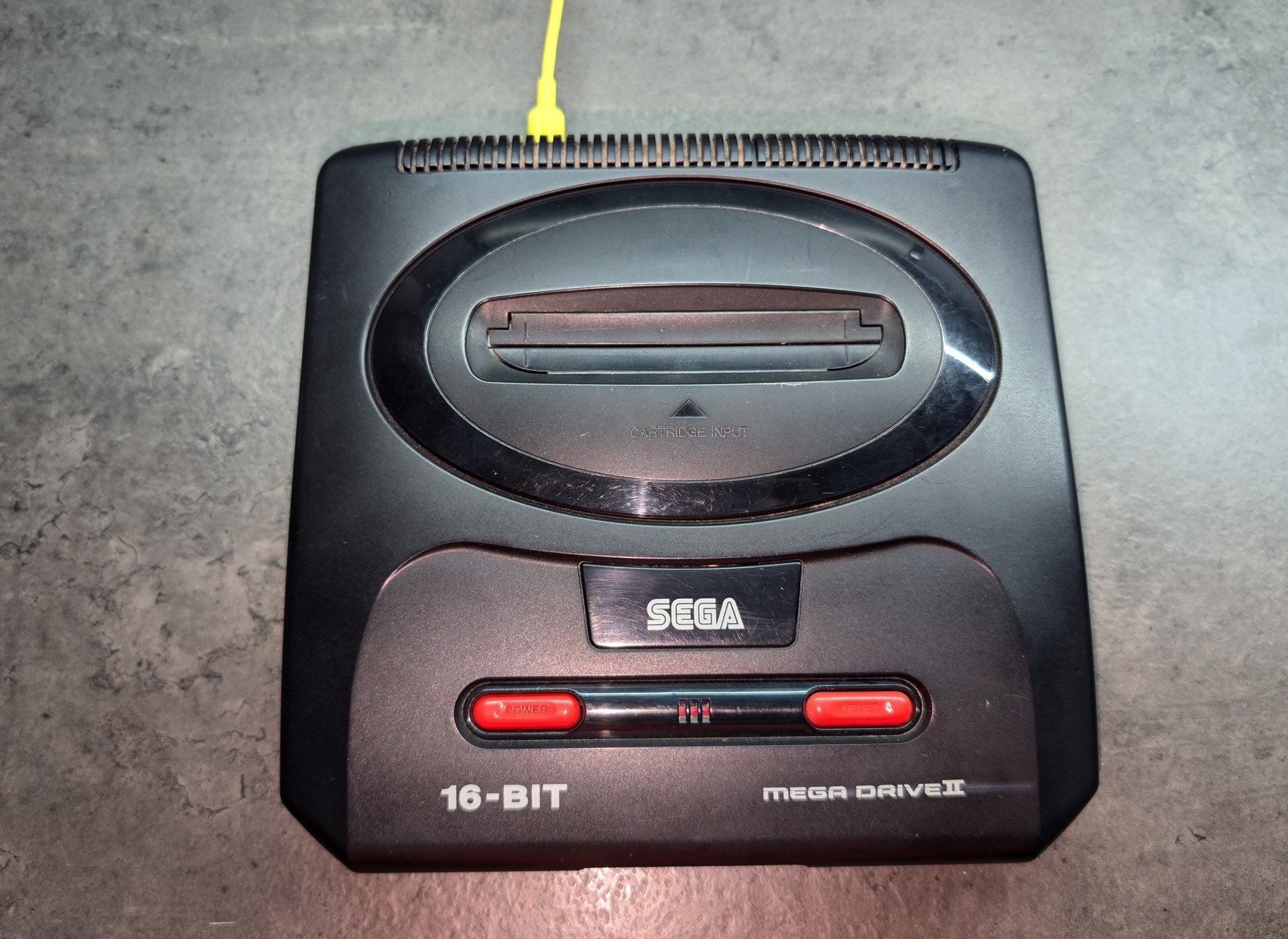

• Mega Drive 2 ⁽¹⁾

⁽¹⁾ There were so many mainboard revisions of each model; before purchasing, make sure your console, motherboard, and connector match the ones shown in the installation guide.

FEATURES

• External power through USB-C.
• Fully compatible with any USB-C charger:
  • • USB power banks
    • USB-A chargers
    • USB-C chargers
    • USB-C PD chargers
    • USB-A to USB-C cables
    • USB-C to USB-C cables

INCLUDED

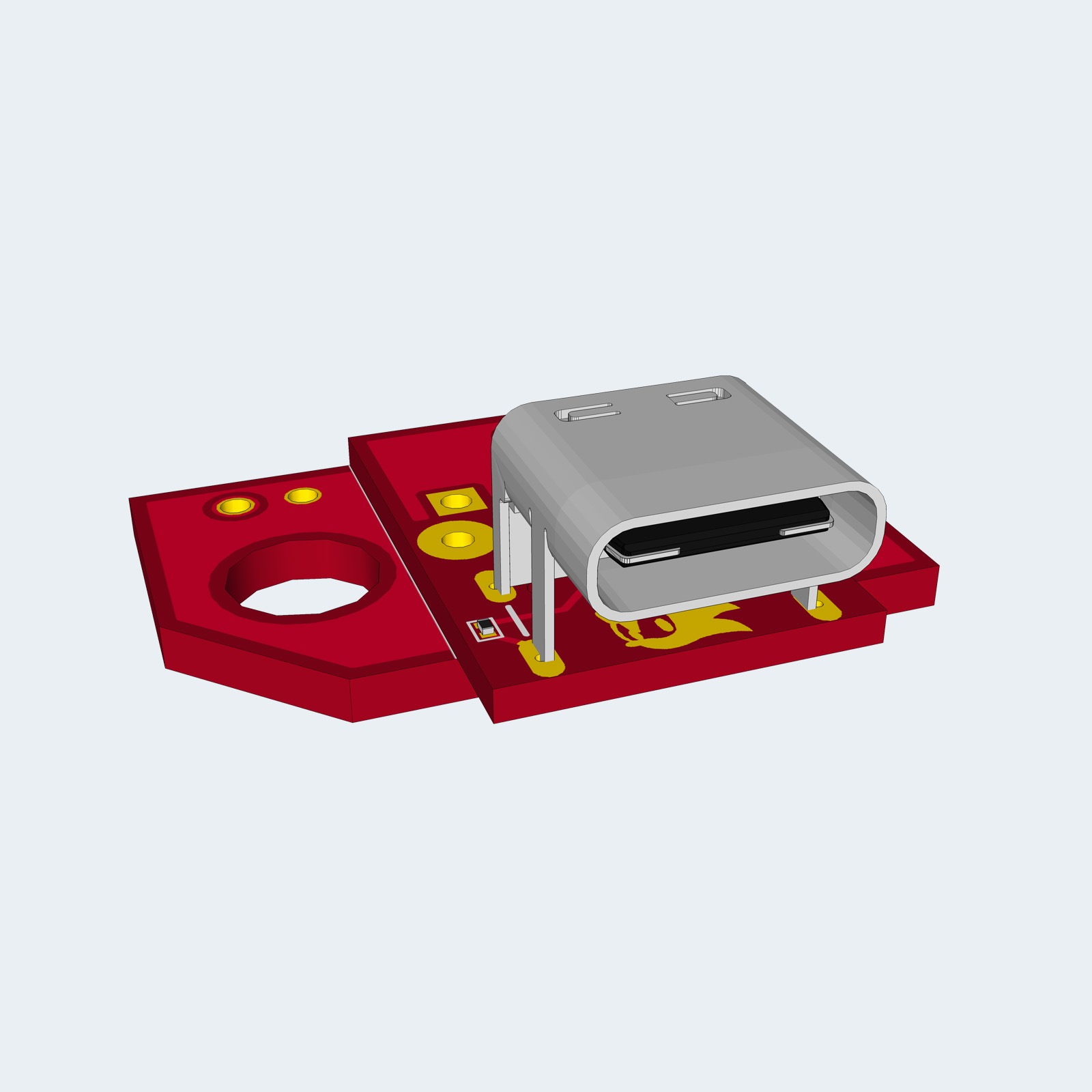

• 1 USB-C board

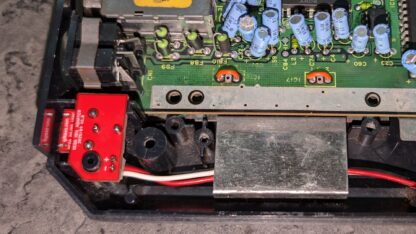

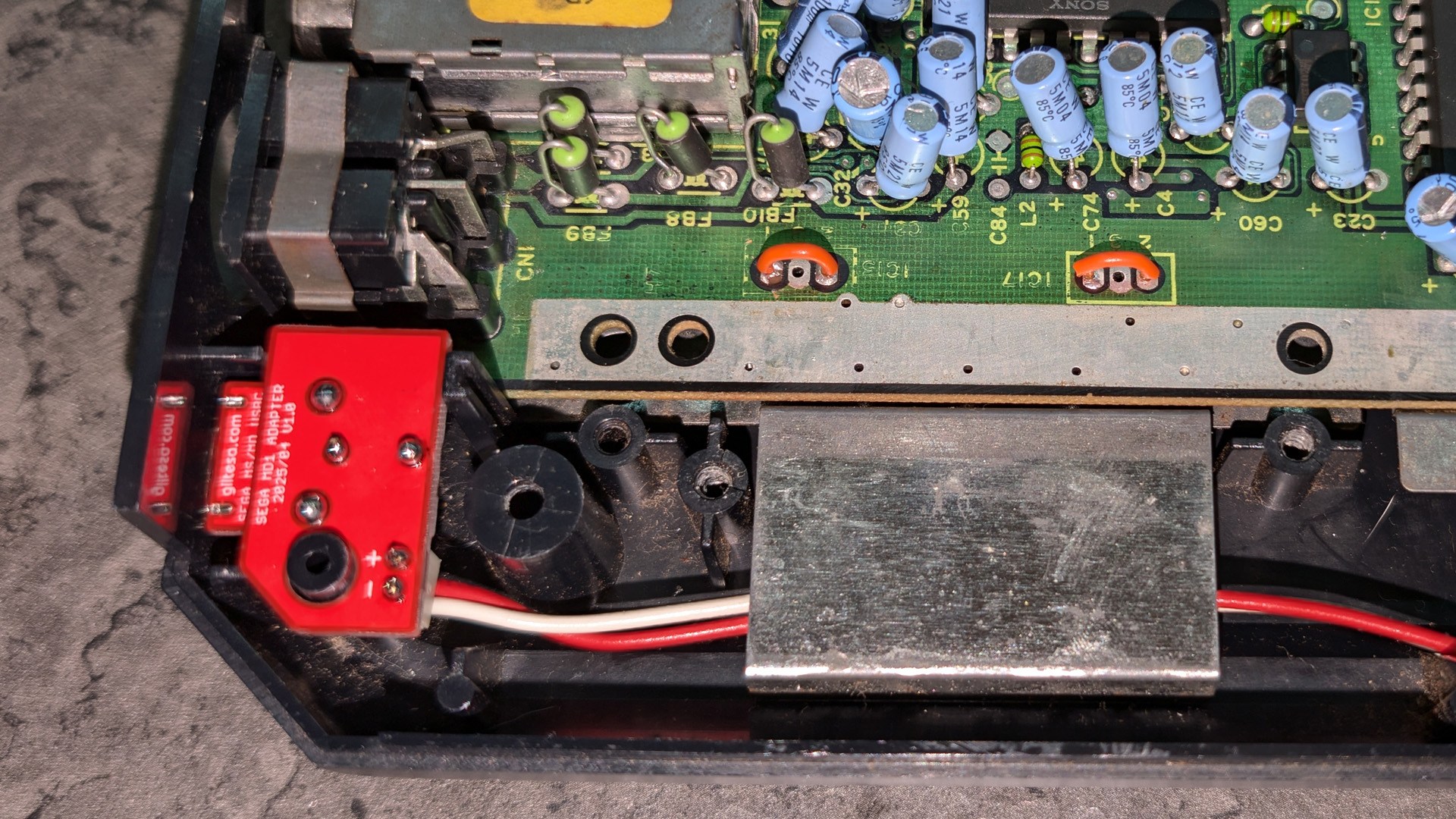

• 1 Mega Drive 1 board adapter
• 1 Plastic cap for the USB-C board
• 5 Single-pin headers
• 4 wires

REQUIRED (NOT INCLUDED)

• Phillips screwdriver
• Soldering iron
• Kapton tape
• Soldering tin
• Flux
• Desoldering pump
• Desoldering braid
• Isopropyl alcohol

DOCUMENTATION

• Installation guide PDF
• GitHub repository
