MiniUSB to USB-C Mod

Description

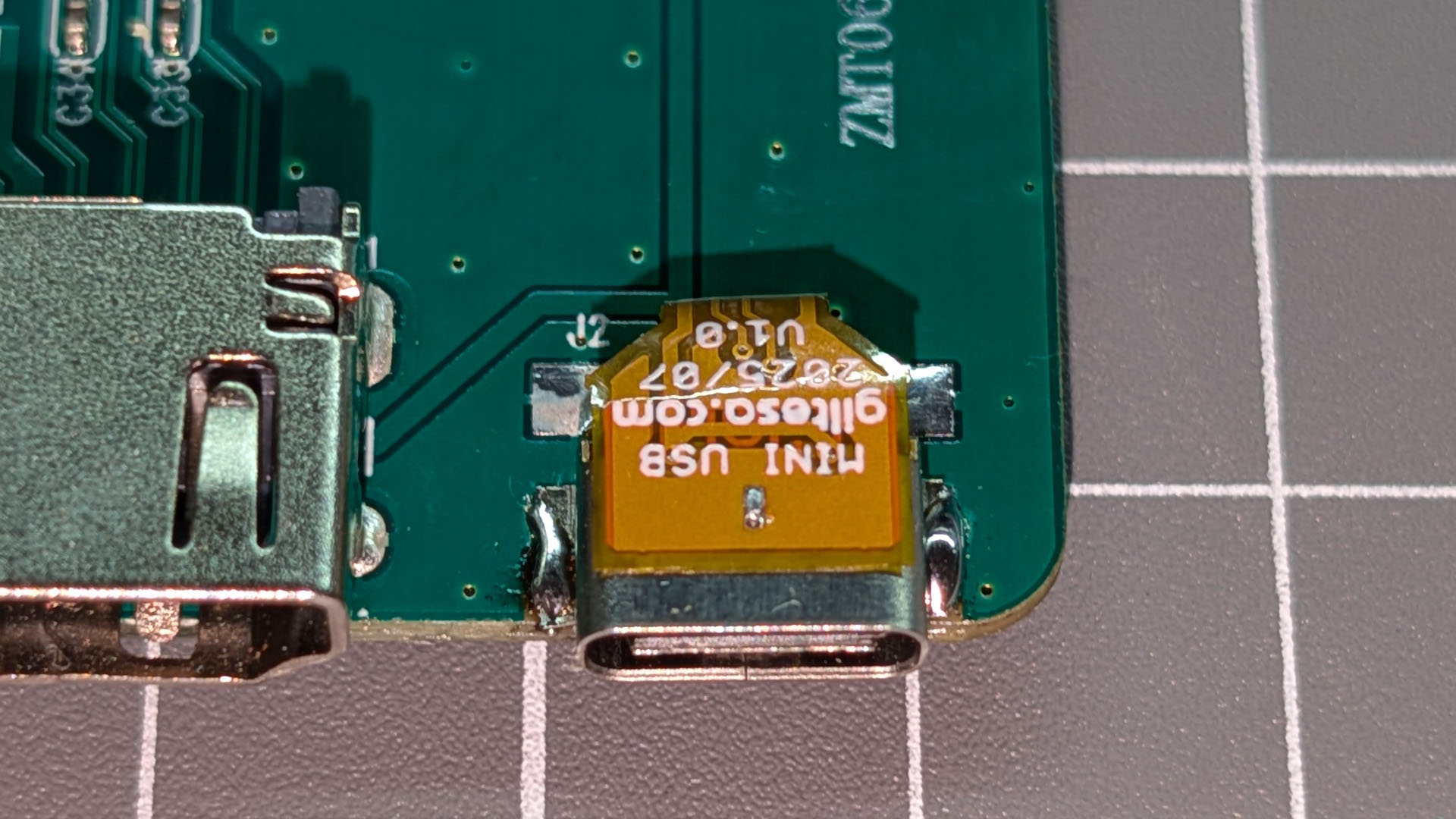

The MiniUSB to USB-C is an adapter board that allows you to replace a MiniUSB connector with a modern and standard USB-C port.

This board is for general use and can be used in a wide variety of devices, allowing you to replace the old connector with the new USB-C.

This board has been successfully tested on the following devices:

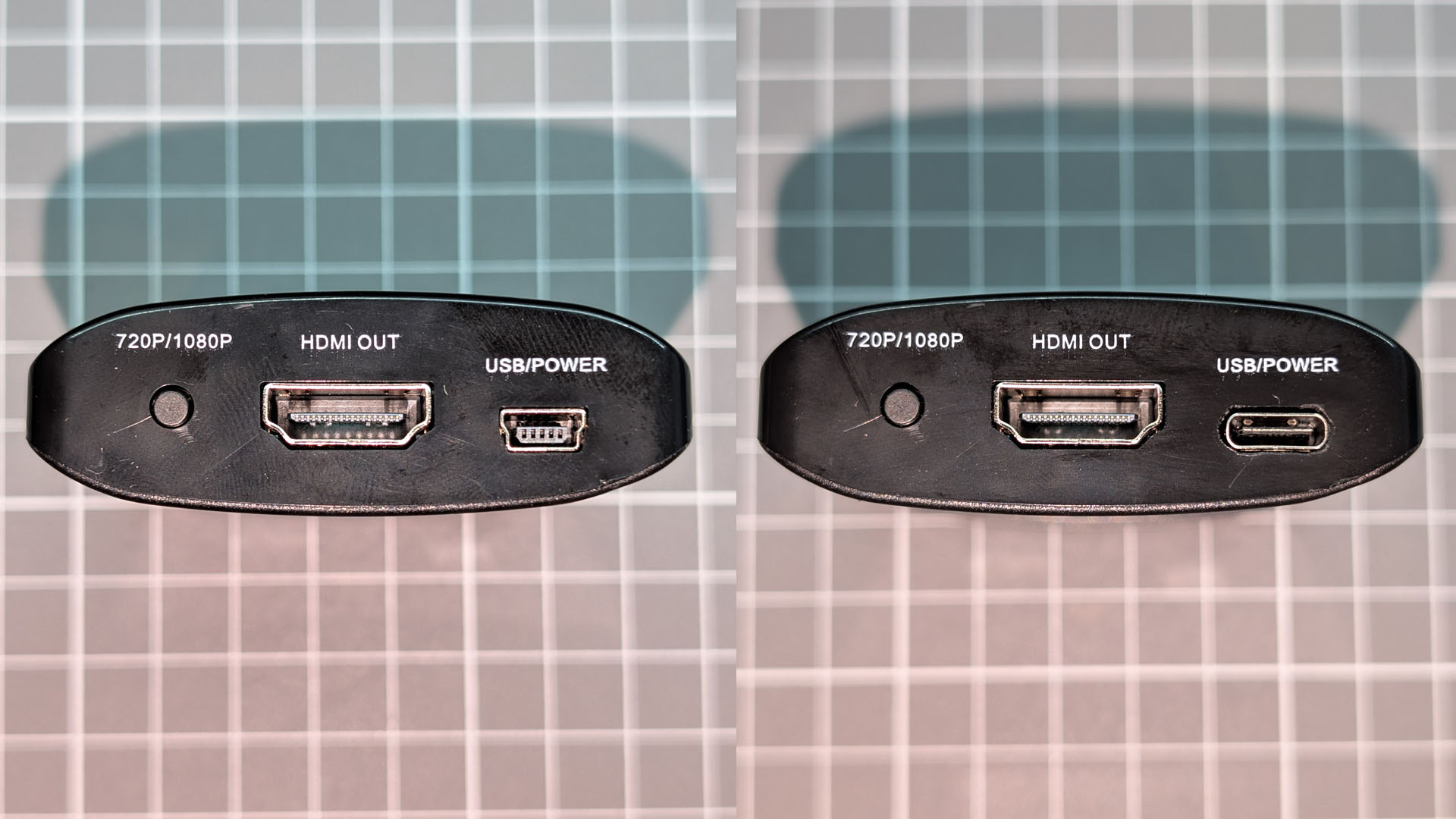

• RCA adapter to HDMI

FEATURES

• Replace the MiniUSB connector with a USB-C, with data connection supported.
• Charge your device with:
  • USB power banks
  • USB-A chargers
  • USB-C chargers
  • USB-C PD chargers (normal speed, not fast)
  • USB-A to USB-C cables
  • USB-C to USB-C cables

INCLUDED

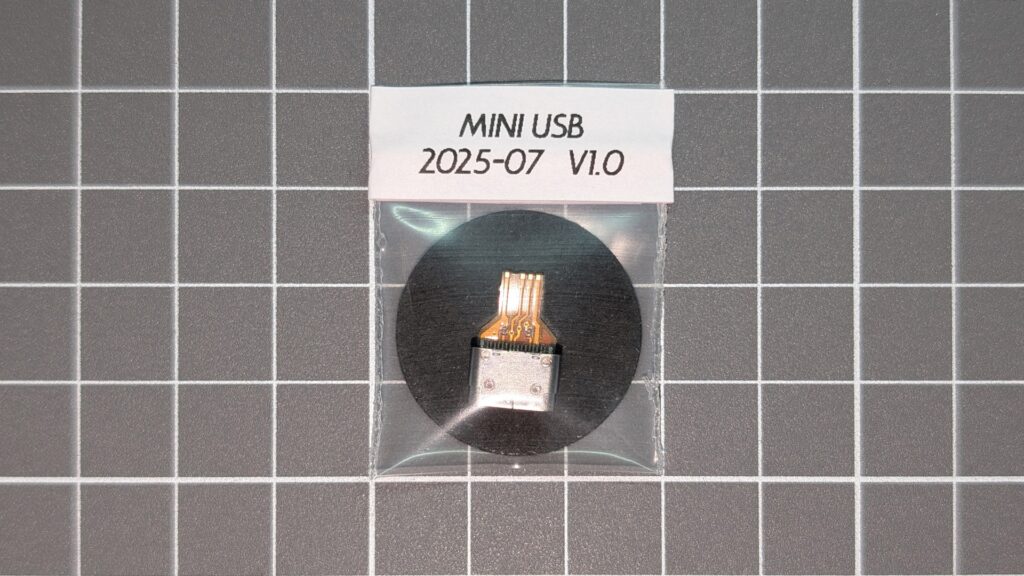

• 1 flexible board.

REQUIRED (NOT INCLUDED)

• Phillips screwdriver.
• Soldering iron / hot-air soldering station.
• Kapton tape.
• Tin.
• Flux.
• Desoldering pump.
• Desoldering mesh.
• Tweezers.
• Scissors.
• Cutting pliers.
• Isopropyl alcohol.

DOCUMENTATION

• Installation guide PDF
• GitHub repository
