PlayStation 4 DualShock Controller: USB-C Mod (All models)

Description

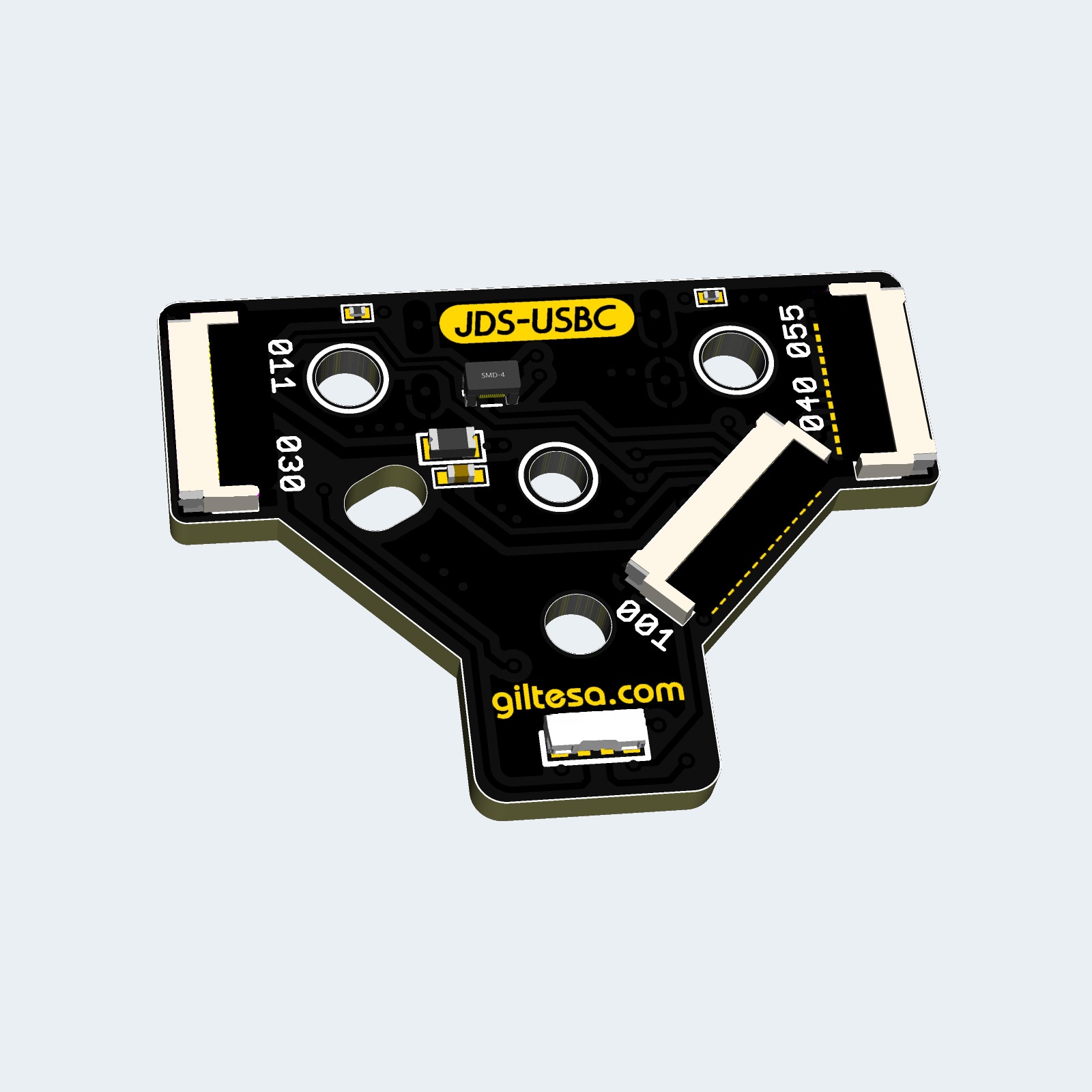

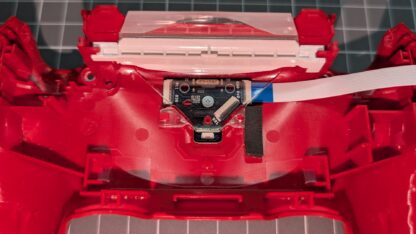

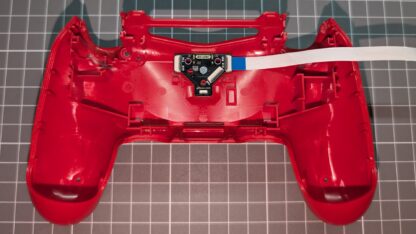

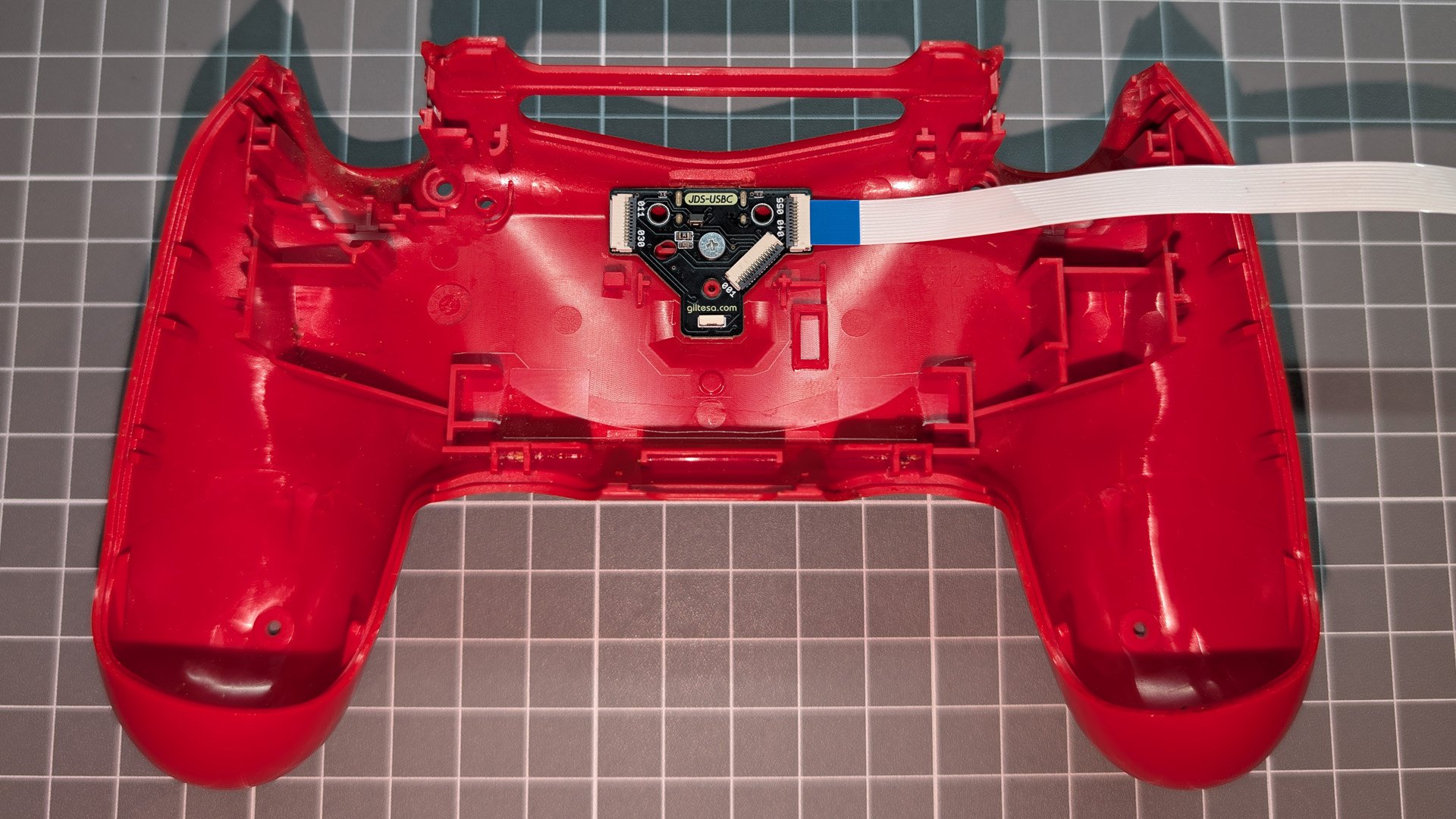

The PlayStation 4 DualShock USB-C Kit is a custom board that lets you upgrade your controller by replacing the original MicroUSB connector with a modern, universal USB-C connector.

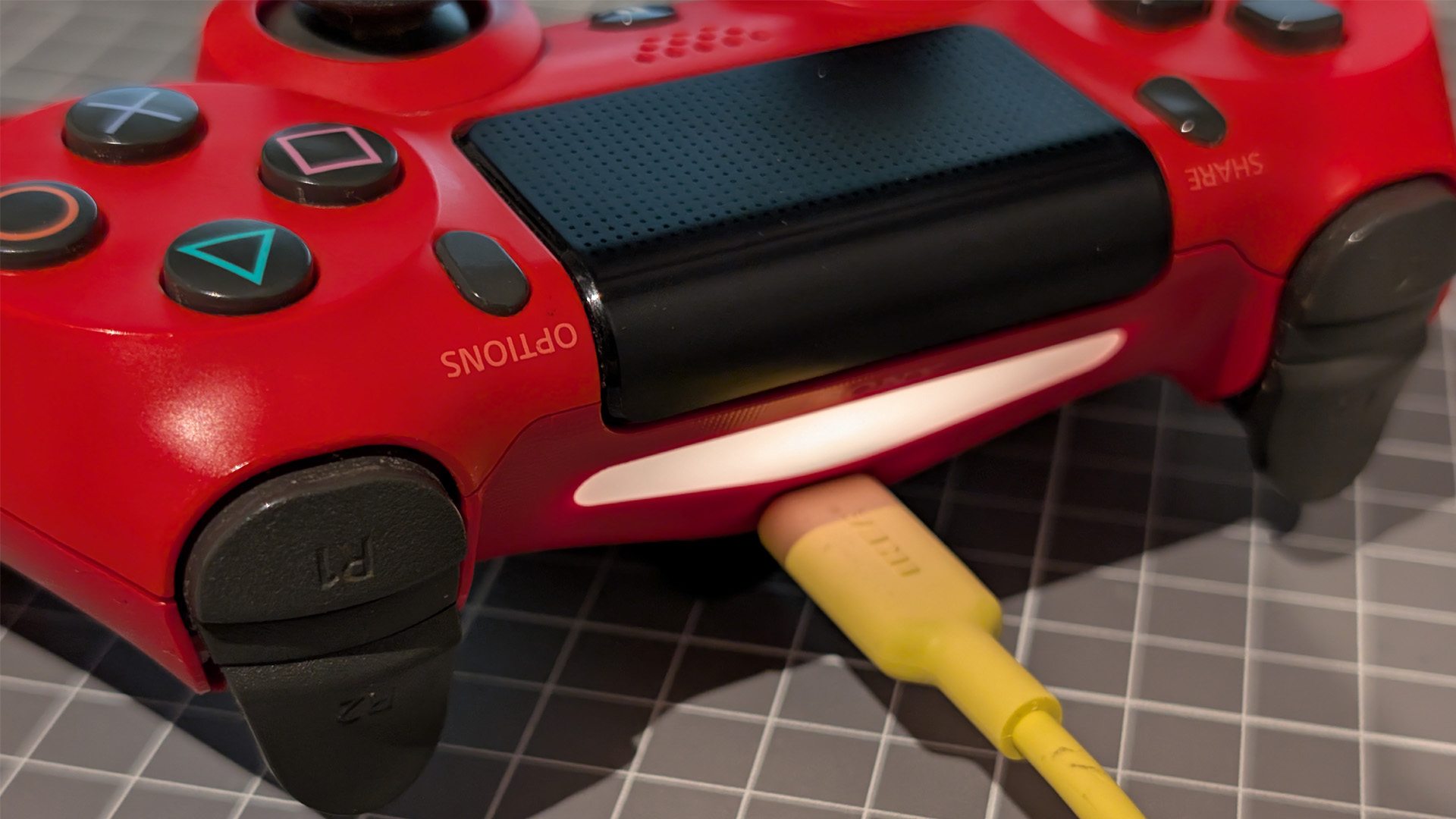

Replace your old or damaged MicroUSB and upgrade to modern convenience. This USB-C kit lets you charge your controller using any standard USB-C charger, including those for your smartphone or laptop.

This board is compatible with all revisions of PS4 controllers:

• PlayStation 4 DualShock 1st Gen (2013~2016)
  • JDS-001
  • JDS-011
  • JDS-030
• PlayStation 4 DualShock 2nd Gen (2016~2021)
  • JDS-040
  • JDS-050
  • JDS-055

FEATURES

• Compatible with all versions of the PS4 controller.
• No soldering required.
• Includes longer new flexible flat cables for even easier installation.
• Charging your PS4 controller with:
  • USB power banks
  • USB-A chargers
  • USB-C chargers
  • USB-C PD chargers (normal speed, not fast)
  • USB-A to USB-C cables
  • USB-C to USB-C cables
• USB data support, like the original MicroUSB connector.

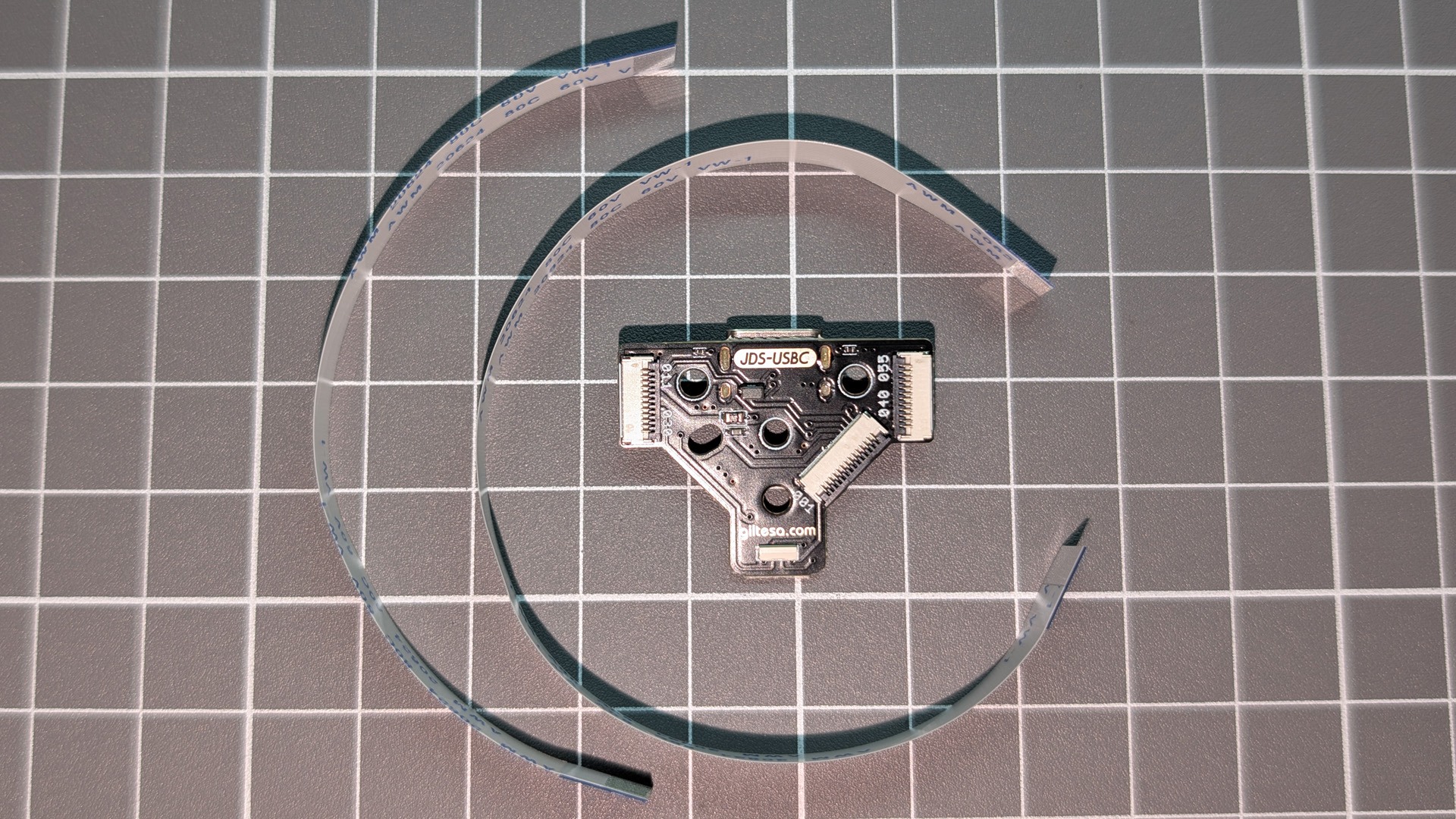

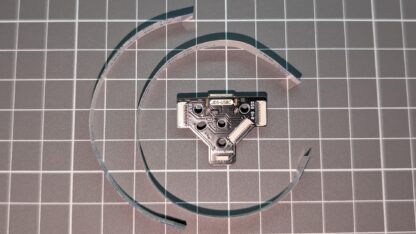

INCLUDED

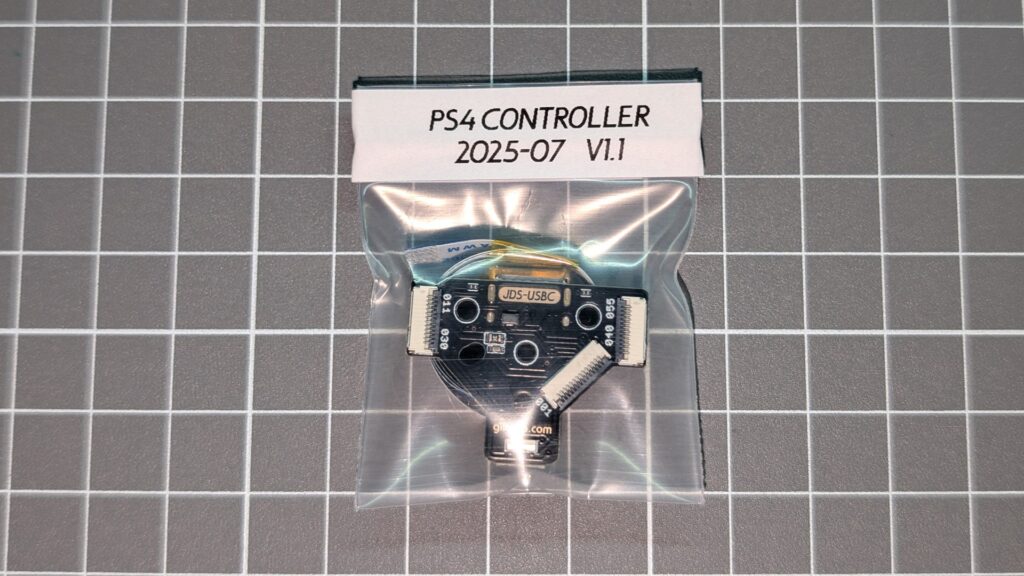

• 1 USB-C board.
• 1 Flexible Flat Cable 12P 10CM
• 1 Flexible Flat Cable 14P 15CM

REQUIRED (NOT INCLUDED)

• Phillips screwdriver
• Plastic opening tools
• Precision file tool set
• Cutter

DOCUMENTATION

• Installation guide PDF
• GitHub repository
