Game Boy DMG: USB-C Charging Kit PRO

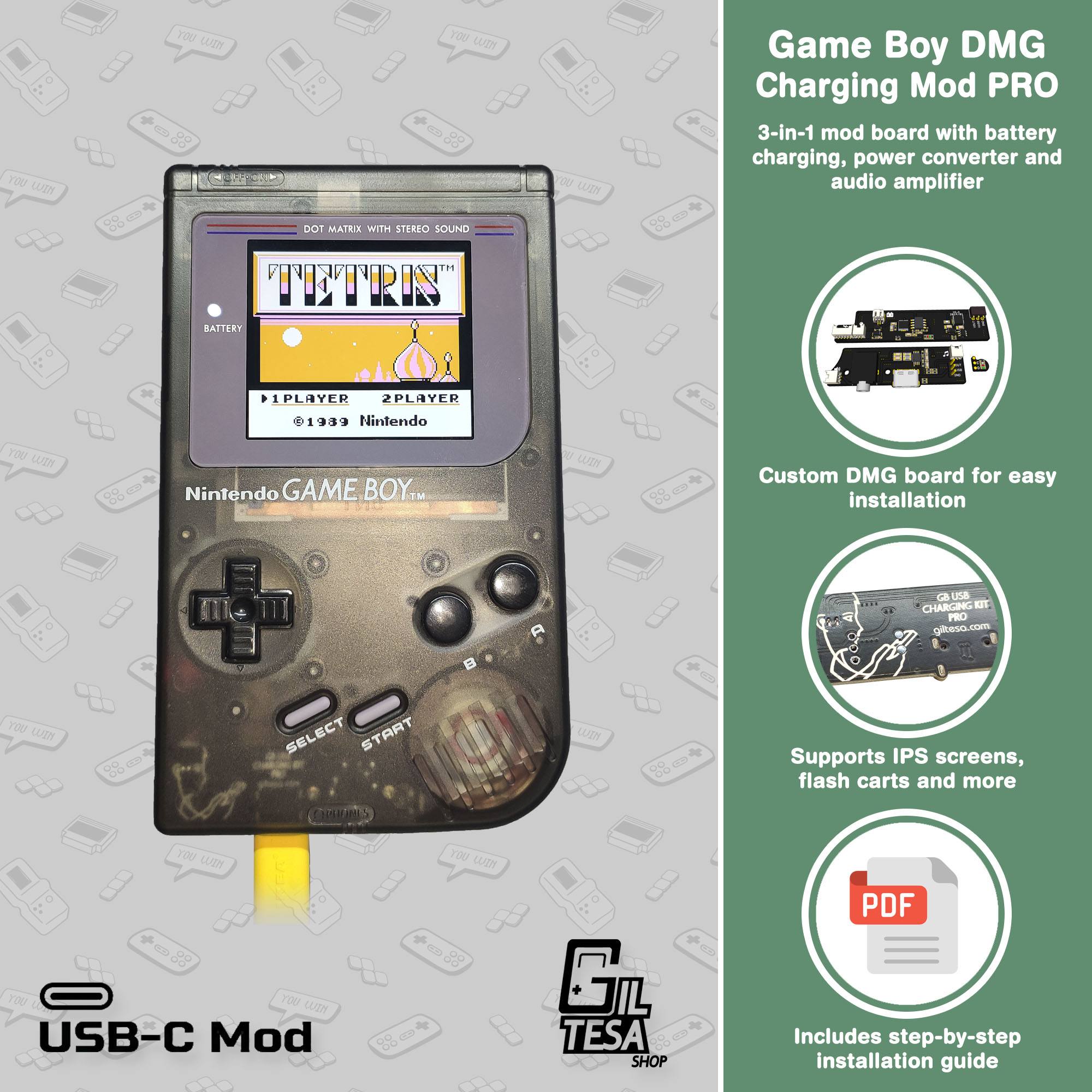

Game Boy DMG: USB-C Charging Kit PRO - Image 2
Game Boy DMG: USB-C Charging Kit PRO - Image 3
Game Boy DMG: USB-C Charging Kit PRO - Image 4
Game Boy DMG: USB-C Charging Kit PRO - Image 5
Game Boy DMG: USB-C Charging Kit PRO - Image 6

Game Boy DMG: USB-C Charging Kit PRO

Original price was: 24,00 €.Current price is: 22,00 €.

In stock

SKU: GB-DMG-PRO Categories: ,

Description

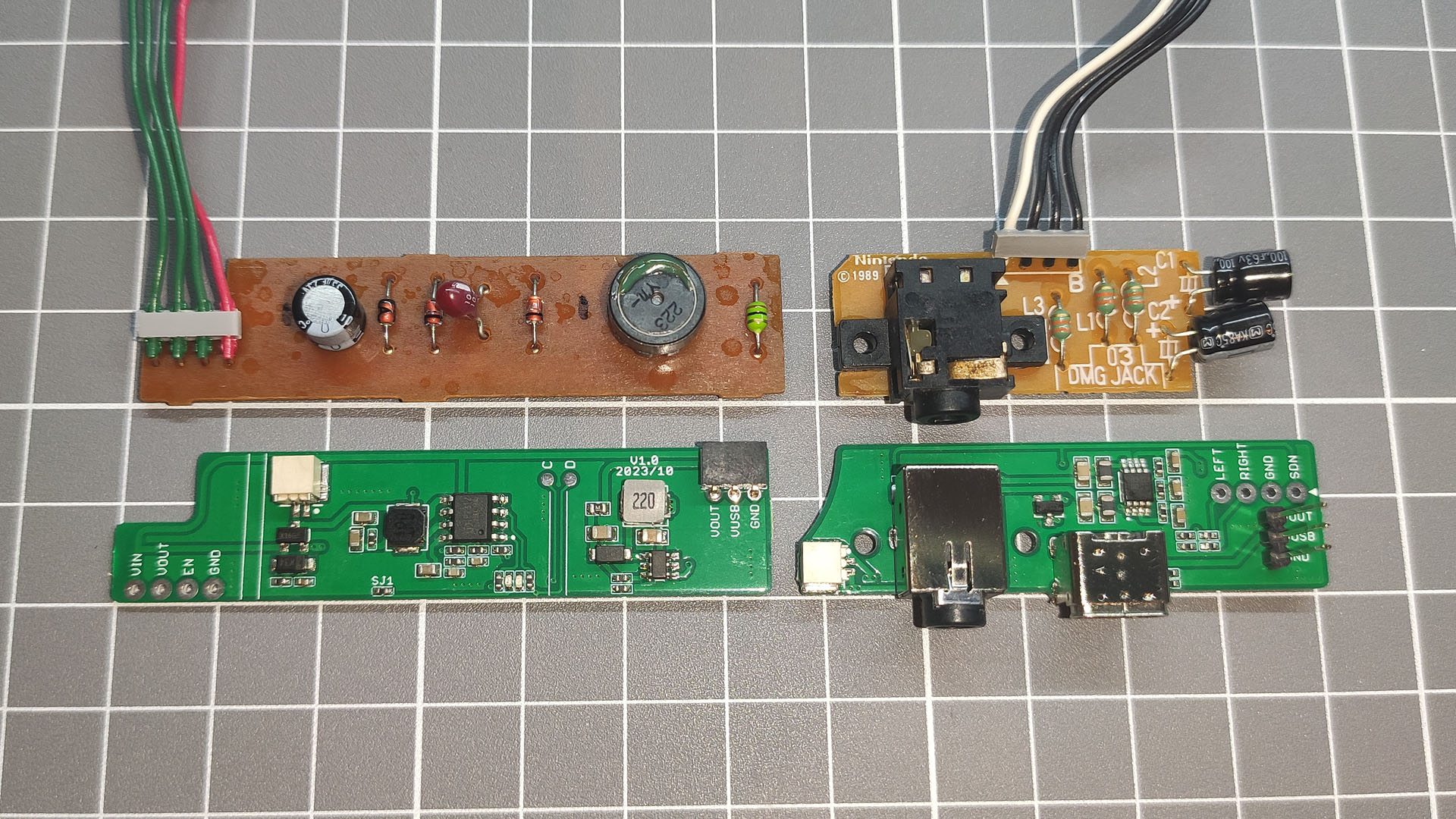

The Game Boy DMG USB-C Charging Kit PRO is a new circuit designed specifically for the Nintendo Game Boy. This all-in-one circuit includes not only the charging controller but also a boost converter and an audio amplifier.

Modern IPS displays with backlighting require more power than the original display, and flash carts used to load numerous games can quickly drain the battery. To truly enjoy the games, it is recommended to use a rechargeable battery instead of AA batteries.

However, simply using a rechargeable battery is not sufficient. The increased power consumption puts a strain on the original electronics, potentially causing noise in the speaker or headphones.

The typical solution is to add a charging circuit for the battery and a power converter to replace the old, inefficient one included in the Game Boy. Some individuals also add an audio amplifier to enhance the sound quality of the speaker. All these modifications make the Game Boy function optimally. However, installing them requires numerous cables and may be challenging for individuals without sufficient knowledge.

This board adds all these features with a clean and straightforward installation:

FEATURES

  • Exact shape for Game Boy DMG.
  • External power through USB-C.(1)
    • Compatibility with all types of USB cables or external batteries.
  • Li-Ion battery charger with overvoltage and undervoltage protection.(1)
  • Power DC converter with a 5V output.(2)
  • Safe charge and play.
  • Audio amplifier for the speaker, amplifying both channels.
  • Integrated LED indicators on the main board for charging (red) and full battery (green). These can be disabled via the SJ1 jumper.
  • External LED indicators board for playing (white), charging (red), and full battery (green). Optional installation.

(1) The USB-C port and li-ion battery require trimming of the shell.

(2) Provides stable power to your Game Boy, IPS screen, and flash cart. However, it doesn’t supply the -19V rail, which means the original screen cannot be used.

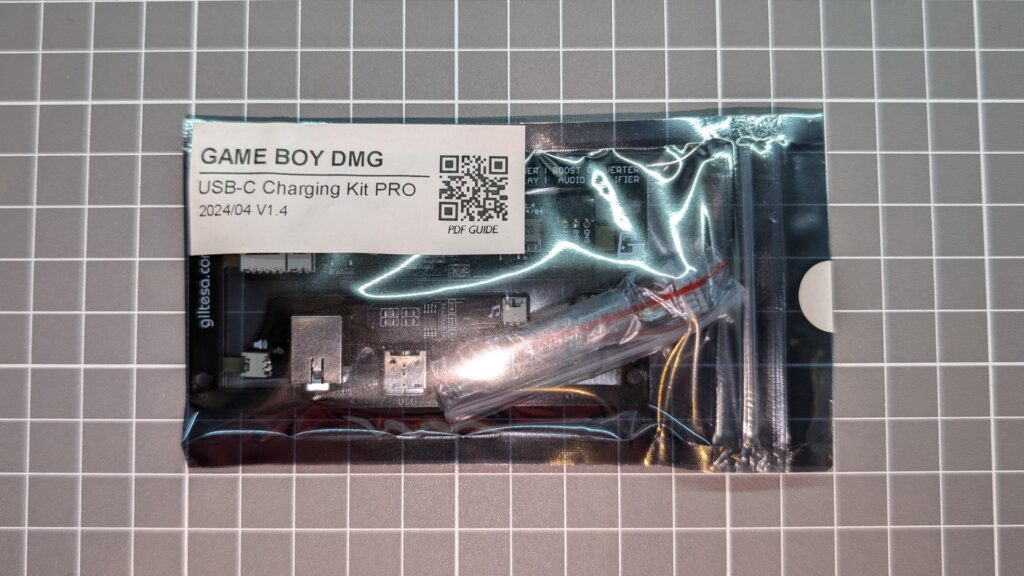

INCLUDED

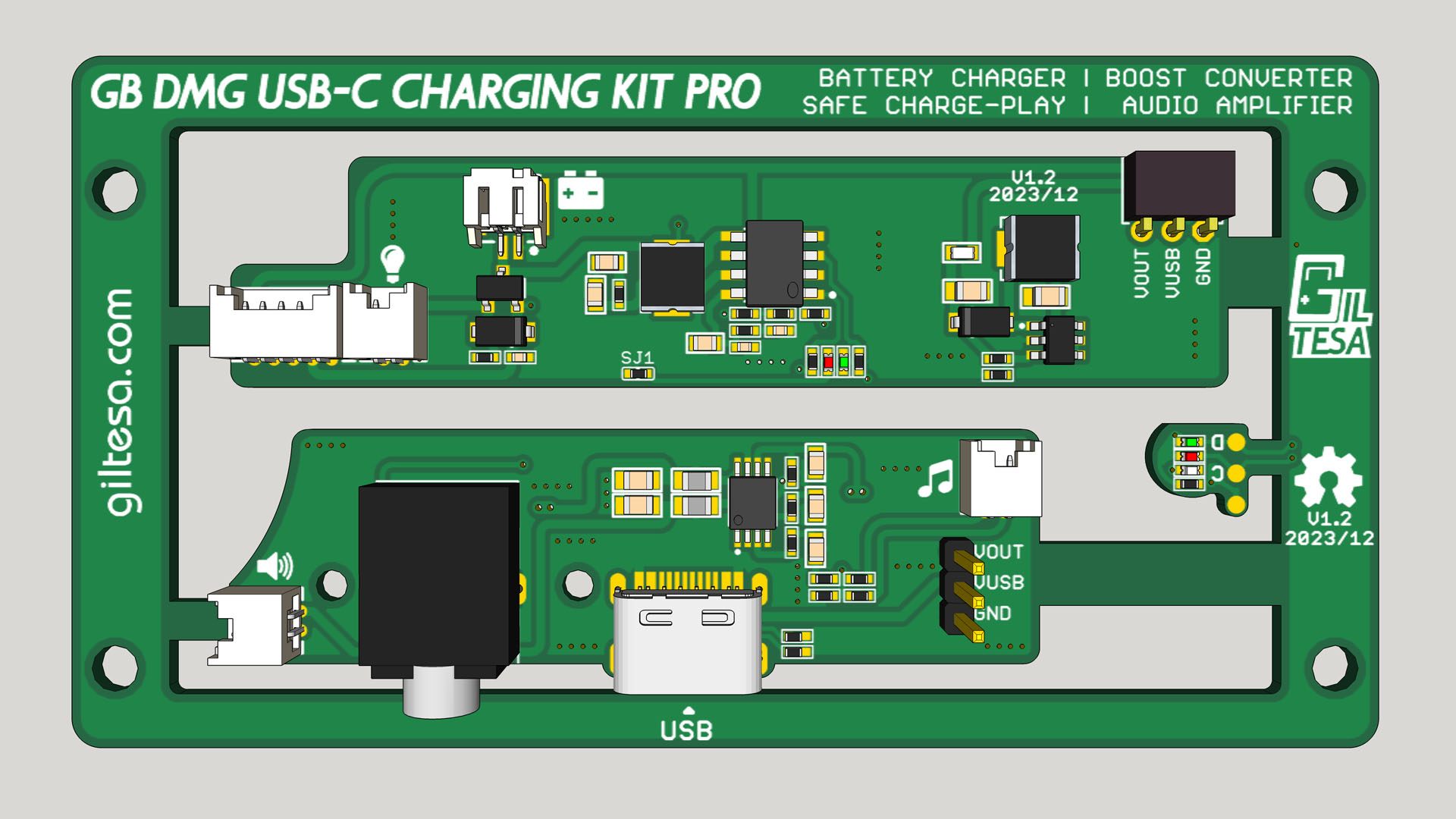

  • 1 frame panel which includes the three boards:
    • Main board
    • USB-C board
    • Light board
  • 1 Battery cable 10cm (with JST SH1.0 2p connector)
  • 1 Audio cable 15cm (with JST 1.25 2p connector)
  • 1 Speaker cable 10cm (with JST 1.25 2p connector)
  • 1 Light board cable 10cm (with JST 1.25 2p connector)
  • 1 Power cable 15cm (with JST 1.25 5p connector)
  • 1 Header with 3 pins
  • 1 Plastic holder for the USB-C board
  • 1 Light diffuser pipe

REQUIRED (NOT INCLUDED)

NOTES

The kit is for IPS screens that only require the 5V rail. The original screen or other screens that require the -19V rail will not work.

DOCUMENTATION

Additional information

Weight 0,017 kg
Dimensions 12 × 6,5 × 1,2 cm
Circuit color

Black
Circuit version

v1.4

Compatibility

Since the kit is soldered using wires and not directly onto the GB’s motherboard, it should be compatible with any version. It may even work with custom motherboards (not tested).

Frequently Asked Questions

Can I use the original screen?

No, you cannot. This board is only compatible with screens which work at 5V (IPS screens). The original screen needs another voltage.

Why are there two red and green lights?

The board includes lights on the main board and on the small light board. This small board is optional; you don’t need to install it if you don’t want to or if it’s too difficult for you. However, if you choose to install it, my recommendation is to remove the small resistor called SJ1 with your soldering iron; this will disable the main board lights. If in the future you want to activate it again, you just need to put a drop of tin because the resistor has a value of 0; it’s just a jumper/cable.

Does the white led indicate the battery level?

Yes, it works as before, when the battery is decreasing the capacity, the light is going to be less brightness. However, I think this effect is more appreciable with the original led because the red color.

Can you use type-c to type-c cables with this board?

Yes, you can. All the products in this shop accept USB-C to USB-C cables and can be charged with any charger, including fast chargers, although at a normal speed.

Can I play and charge the battery at the same time? (Safe charge-and-play)

The electronic board supports this feature, allowing you to charge and play at the same time.

Changelog

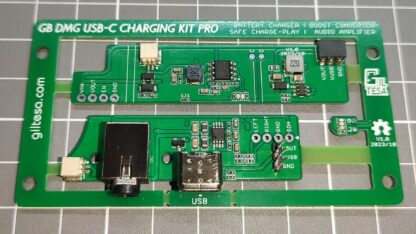

  • 2023-10: v1.0 (Not commercialised)
    • Initial version

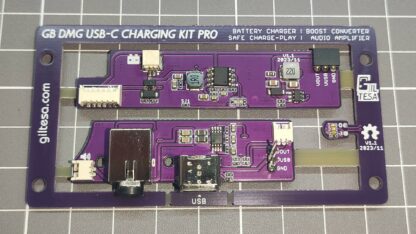

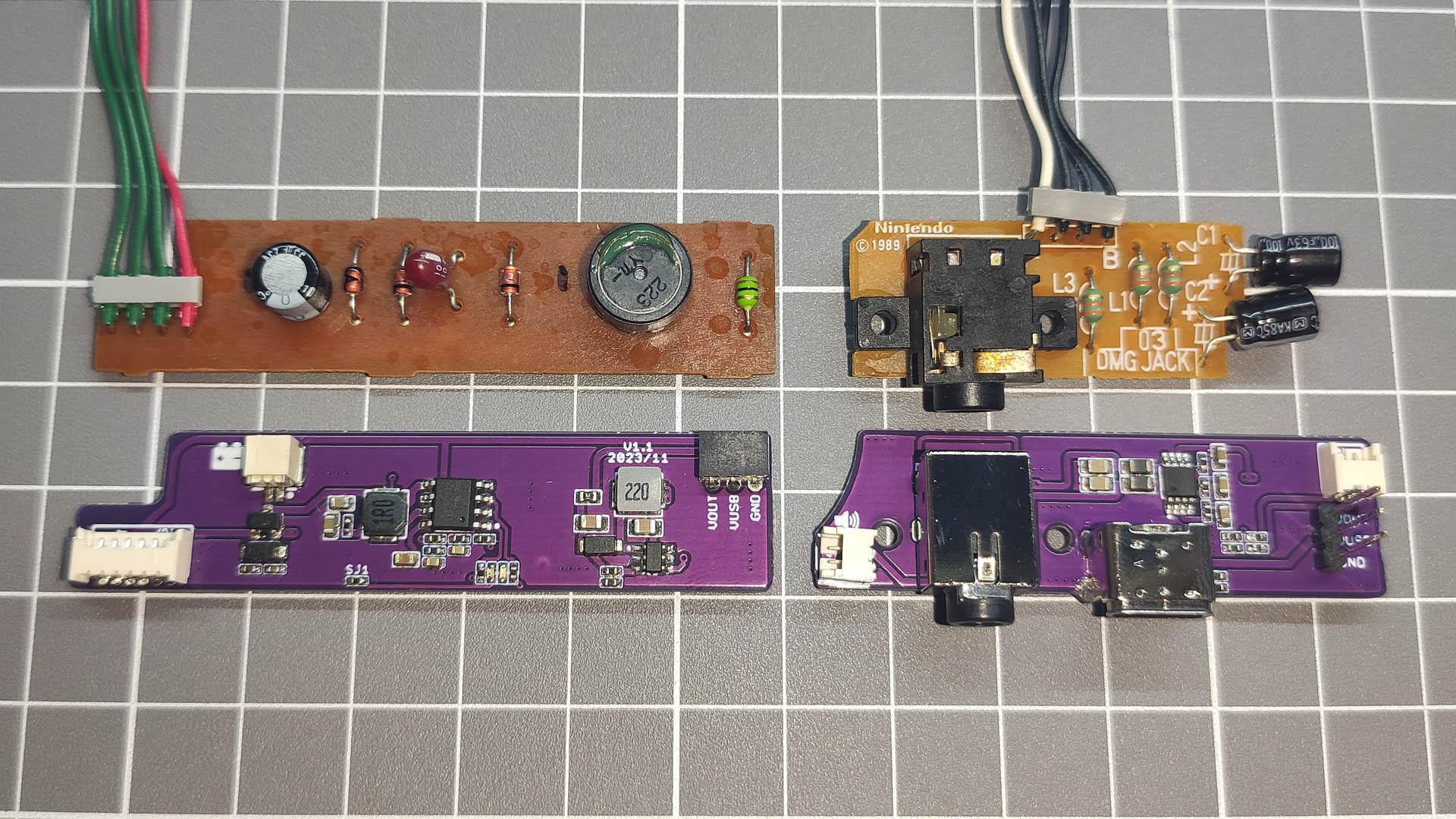

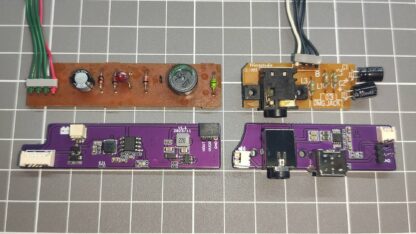

  • 2023-11: v1.1 (Not commercialised)
    • Replaced the regular USB-C with a higher one.
    • Replaced the 2.54mm connectors with 1.25mm ones, except for the battery which remains at 1.0mm.
    • Other changes such as icons, logos, etc.
  • 2023-12: v1.2 (Not commercialised)
    • Replaced the activation of the DC converter from pin EN to the power cutoff of VIN since it generated noise with external power. (Now the circuit is like GBP/GBC-PRO).
    • The polarity of the white LED has been changed so that the light board can be soldered in the correct position with IPS screens.
    • Replaced the resistance of the white LED from 2K to 1K to increase its brightness.
    • The footprint of all JST connectors has been adjusted.
    • Replaced the 6-pin JST connector with a 5-pin one + an additional 2-pin JSP auxiliary connector for the light board.
  • 2024-01: v1.3
    • Change brightness of the LEDs.
    • Adjust battery connector position.
    • Add final logos.
  • 2024-04: v1.4
    • Improved the light board pads to make them stronger.
