Nintendo 2DS & 3DS: USB-C Kit (Supports data connection)
Nintendo 2DS & 3DS: USB-C Kit (Supports data connection) - Image 2
Nintendo 2DS & 3DS: USB-C Kit (Supports data connection) - Image 3
Nintendo 2DS & 3DS: USB-C Kit (Supports data connection) - Image 4
Nintendo 2DS & 3DS: USB-C Kit (Supports data connection) - Image 5

Nintendo 2DS & 3DS: USB-C Kit (Supports data connection)

6,00 € – 9,00 €

Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.
SKU: N/A Categories: , , , , , ,

Description

This product is a modified version of the Nintendo 2DS & 3DS USB-C Kit. It’s not a substitute but rather an alternative for customers who need specific functionalities.

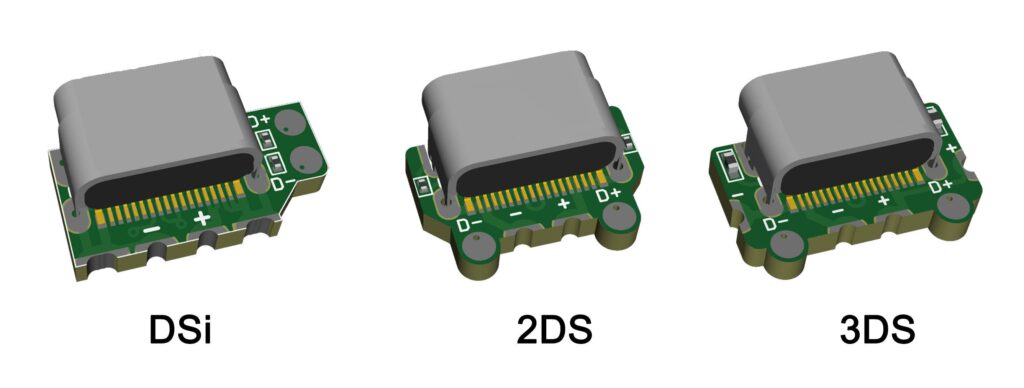

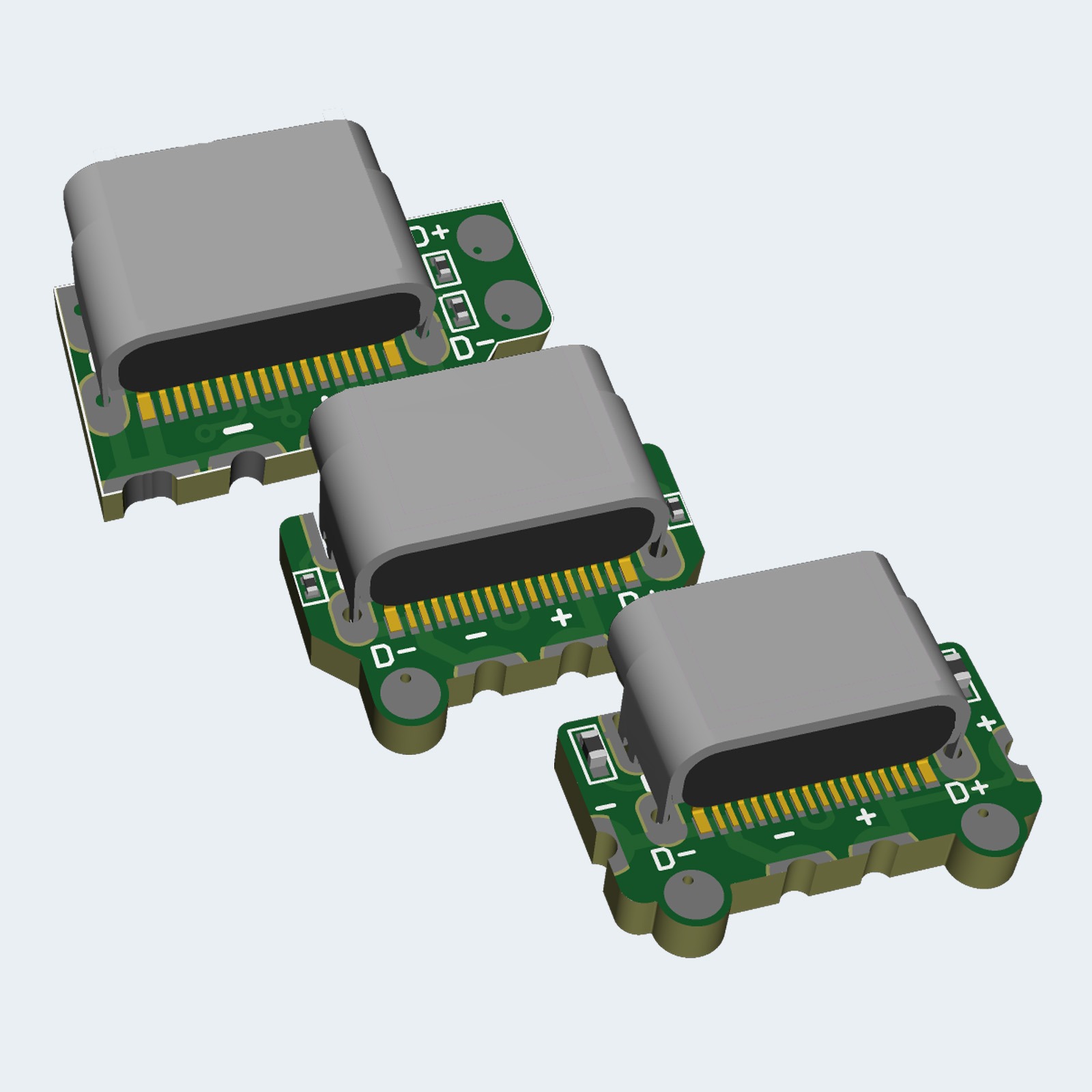

This product includes a shorter USB-C connector with data connection support. This means you can solder components to the USB board that require the connector to send or receive data via the USB protocol. The most common use case is for video capture boards that send video via USB to a computer. With this kit, you can have your 2DS or 3DS equipped with a single connector for both power and data, instead of needing two connectors: one for power and another for data.

The rest of the specifications, as well as the installation guide, are the same as the original products. Please visit their pages for more information:

Additional information

Weight N/A
Dimensions N/A
Circuit color

Green
Circuit version

v1.1

Changelog

  • 2023-03: v1.0 (Not released)

    • Initial version.
  • 2023-05: v1.1

    • Reduced the width of the PCB.

Gallery of customer's installation

If you are happy with your installation result, you can send me the photos and I can publish here, other clients will see the result!
